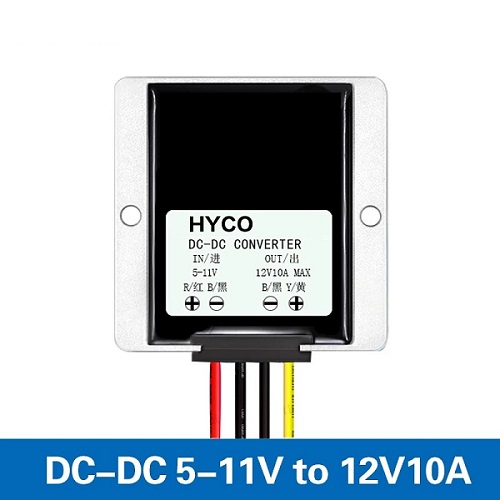

5-11V to 12V Boost Converter

  • 5-11V to 12V 10A
5-11V to 12V 10A

5-11V to 12V 10A

  • Model Number: HY-SDL51210
  • Input Voltage: 5-11V
  • Output Voltage: 12V
  • Output Current: 10A MAX
  • Product description: 5-11V to 12V 10A

DC-DC 6V to 12V Converter,9V to 12V 10A Power Supply DC Voltage Boost Step Up Module

Product Name 6V to 12V Converter,9V to 12V 10A Power Supply
Model HY-SDL51210
Input rated voltage 5V
Input voltage range 5-11V
Efficiency 93% (half load), 91% (full load)
Output voltage 12V
Output current 10A MAX
Output rated power
Output peak power
Voltage regulation < 1%
Load regulation < 2%
Working temperature

-40°c ~+80°c( If ambient temperature exceeds 40°c, lower power use,

or to enhance heat dissipation)

Module Properties

non-isolated boost module

Rectification synchronous rectification
Waterproof rating
Full load temperature rise: 50°c
Protection Over-current, Over-temperature

Auto-recovery when device is back to normal operating,

waterproof IP68 design, anti-shock protection

Short-circuit protection
NO, if need pls add fuse on the positive pole on input
Input Reverse Polarity Protection None (Please Series diode at the input port.)
NW 280G
Product size 74*74*32MM

Other output current

option for 12V to 48V

2A, 4A, 10A(pls contact with our sales manager if need)

>Pls install according to the the label strictly,positive pole and nagative pole can’t be reversed, or the module and device might be damaged
>To assure this converter has the sufficient voltage and power pls make sure the voltage and power input is enough.
