5-11V to 12V Boost Converter

  • 5V-11V to 12V 1/2/3A
  • 5V-11V to 12V 1/2/3A
5V-11V to 12V 1/2/3A5V-11V to 12V 1/2/3A

5V-11V to 12V 1/2/3A

  • Model Number: HY-SZL512
  • Input Voltage: 5-11V
  • Output Voltage: 12V
  • Output Current: 1A 2A 3A MAX
  • Product description: 5V-11V to 12V 1/2/3A
  • INQUIRY

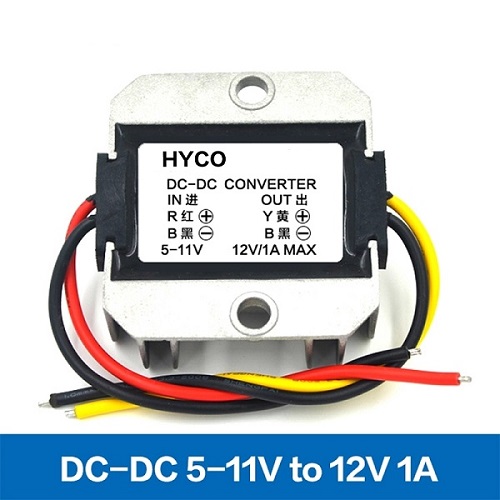

6V/9V(5-11V) to 12V DC DC Boost Step Up Converter Power Supply Module

Product Name 6v to 12v converter
Model HY-SZL51201/HY-SZL51202/HY-SZL51203
Input rated voltage 5V
Input voltage range 5-11V
Efficiency 93% (half load), 91% (full load)
Output voltage 12V
Output current 1A
Output rated power
12W
Output peak power
15W
Voltage regulation < 1%
Load regulation < 2%
Working temperature

-40°c ~+80°c( If ambient temperature exceeds 40°c, lower power use,

or to enhance heat dissipation)

Module Properties

non-isolated boost module

Rectification synchronous rectification
Waterproof rating
IP68
Full load temperature rise: 50°c
Protection Over-current, Over-temperature,Instant absorption of high voltage protection

waterproof IP68 design, anti-shock protection

Short-circuit protection
NO, if need pls add fuse on the positive pole on input
Input Reverse Polarity Protection None (Please Series diode at the input port.)
NW 109G
Product size  66*60*22MM

Other output current

option for 48V to 12V

2A,3A,4A,10A(pls contact with our sales manager if need)





Attention:
>Pls install according to the the label strictly,positive pole and nagative pole can’t be reversed, or the module and device might be damaged
>To assure this converter has the sufficient voltage and power pls make sure the voltage and power input is enough.
