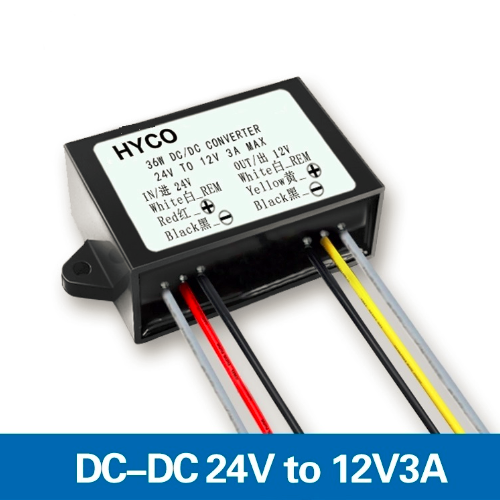

24V to 12V 3A -12A

Product Name

DC DC Converter 24V to 12V

Brand

HYCO

Model No.

Module Properties

non-isolated buck module

Rectification

synchronous rectification

Input

Input Voltage

DC 24V

Input Voltage Range

DC 17-35V

Output

Output Voltage

DC 12V

Output Current

3A / 5A / 8A / 10A / 12A

Output Power

36W / 60W / 96W / 120W / 144W

 Conversion Efficiency

Voltage regulation

±1%

Load regulation

± 2%

Ripple (Full load test)

< 150mV

No-load current

< 100mA

Working Temperature

-40~80℃

Waterproof Rating

IP68

Protection

Over-current protection

Overheat protection

Short circuit protection

 Input/Output Reverse Polarity Protection

No, please follow label instructions wiring strictly: red for input positive, black is negative, yellow for output positive

Application

Electric motors, fans, Audio, Trucks, Golf Carts ,Forklifts

GPS Navigation, Monitoring, Air conditioning

LED car display, DVD, LED bulb lights

Wind Power System, Solar Panel Power System

Electrical appliances, water pumps, industrial equipment, telecommunications and so on.

Certification

CE/RoHS/FCC

Case Material

Plastic, anti-shock, anti-drop, anti-moisture, anti-dust and so on

Product Size (L x W x H)

58*40*22mm

Installation Cable Length

 13-14cm

Product Weight

 97g

Warranty

12 months, lifetime up to 100,000 hours

Cooling Way

Free air convection

OEM Service

Support

Customized Service

Accept customized converter such as input/output voltage, cable, interface and etc, Contact HYCO Now!
