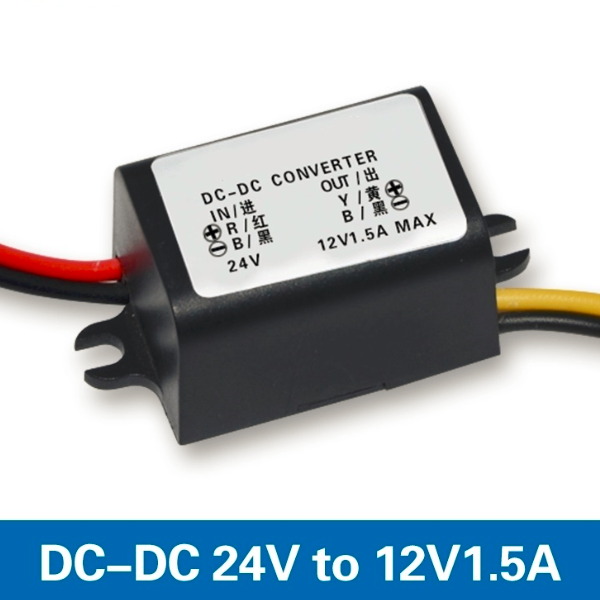

24V to 12V

  • 24V to 12V 1.5A/2A/3A/5A
24V to 12V 1.5A/2A/3A/5A

24V to 12V 1.5A/2A/3A/5A

  • Model Number: HY-XS2412
  • Input Voltage: 24V
  • Output Voltage: 12V
  • Output Current: 1A 2A 3A MAX
  • Product description: 24V to 12V 1.5A/2A/3A/5A
  • INQUIRY

DC DC Power Converter 24V to 12V Step Down Voltage Converter Module 24 Volt to 12 Volt Buck Transformer Module 1.5A/2A/3A/5A

Item Name 24v to 12v step down converter
Brand HYCO
Input rated voltage 24V
Input voltage range 15-40V
Efficiency >90%
Output voltage 12V
Output current 1.5A / 2A / 3A / 5A MAX
Output rated power
18W / 24W / 36W / 60W
Output peak power
21W / 28W / 43W /72W
Voltage regulation < 1%
Load regulation < 2%
Working temperature

-40°c ~+80°c( If ambient temperature exceeds 40°c, lower power use,

or to enhance heat dissipation)

Module Properties

non-isolated buck module(buck)

Rectification synchronous rectification
Waterproof rating
IP68
Full load temperature rise: 50°c
Protection Over-current, Over-temperature, Output Short circuit protection
NW 45G
Product size 36*27*22mm

Other output current

option for 24V to 12V

8A, 10A,12A, 15A, 20A, 25A,30A(pls contact with our sales manager if need)

Attention:
>Pls install according to the the label strictly,positive pole and nagative pole can’t be reversed, or the module and device might be damaged
>To assure this converter has the sufficient voltage and power pls make sure the voltage and power input is enough.
