24V to 12V

24V to 12V 10A

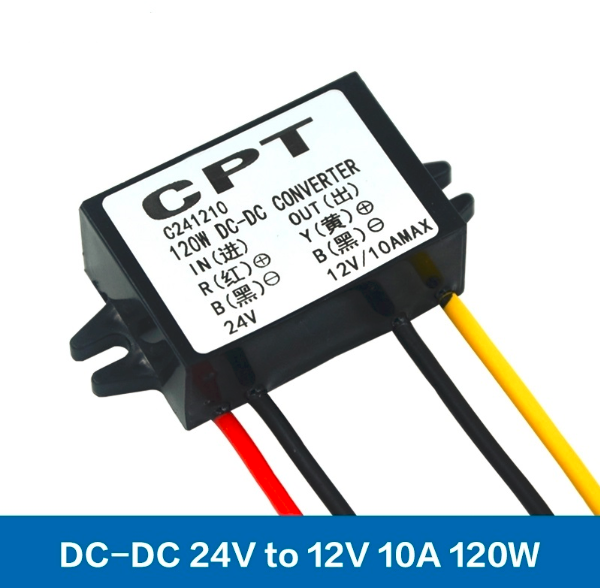

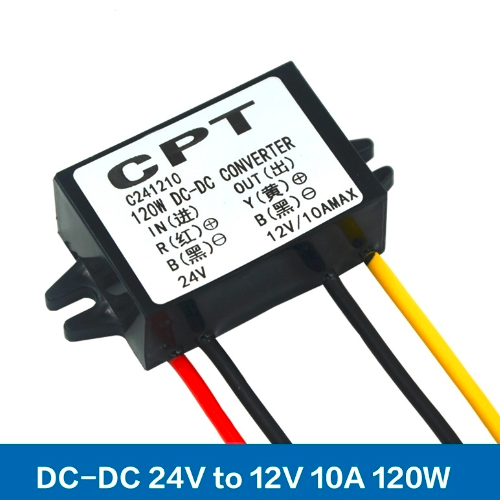

DC/DC Converter Input DC24V to Output DC12V 10A for Car Vehicle

Product Name	24v dc to 12v dc converter
Model	HY-S241210
Input rated voltage	24V
Input voltage range	15V-40V
Efficiency	93%
Output voltage	12V (minimum pressure difference:3V)
Output current	10A MAX
Output rated power	120W
Output peak power	144W
Voltage regulation	< 1%
Load regulation	< 2%
Working temperature	-40°c ~+85°c( If ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation)
Module Properties	non-isolated buck module(buck)
Rectification	synchronous rectification
Waterproof rating	IP68
Full load temperature rise:	50°c
Protection	Over-current, Over-temperature, Short-circuit protection, waterproof IP68 design, anti-shock protection
Input Reverse Polarity Protection	NONE( (Please Series diode at the input port.)
NW	100g

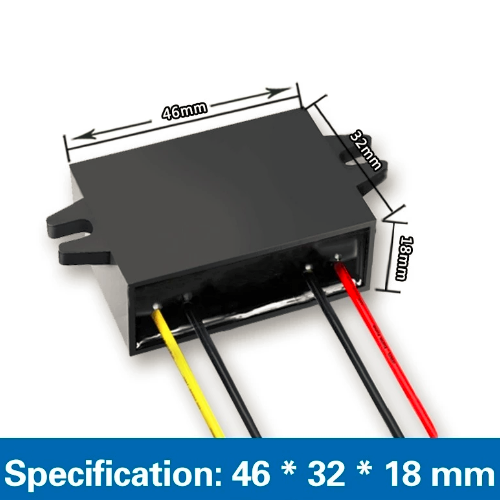

Product size	463218mm
Other outut current for 24V to 12V available	8A,12A,15A,20A,30A (pls contact our sales team if need)
Attention: >Pls install according to the the label strictly,positive pole and nagative pole can’t be reversed, or the module and device might be damaged >To assure this converter has the sufficient voltage and power pls make sure the voltage and power input is enough.
