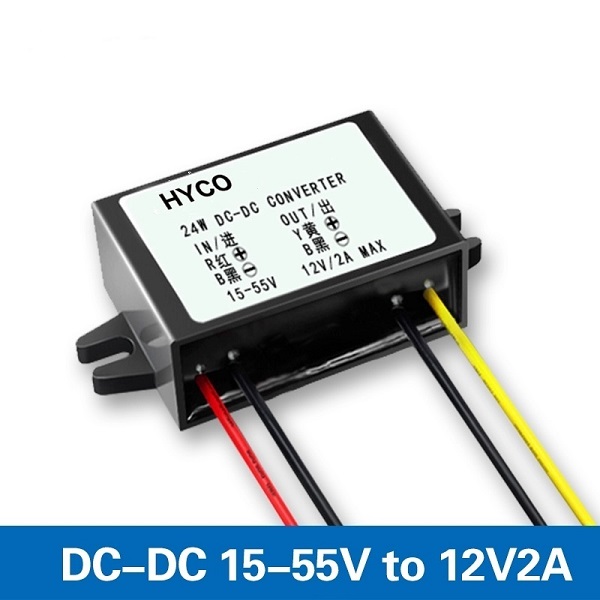

36V/48V/60V to 12V

48V to 12V 2A

24v 36v 48v dc to 12v dc voltage converter step down transformer,dc24v to dc12v

Model	HY-S481202
Input rated voltage	24V 36V 48V DC
Input voltage range	15-55V DC
Efficiency	>85%
Output voltage	12V
Output current	2A MAX
Output rated power	24W
Output peak power	28W
Voltage regulation	< 1%
Load regulation	< 2%
Working temperature	-40°c ~+85°c( If ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation)
Module Properties	non-isolated buck module(buck)
Rectification	synchronous rectification
Waterproof rating	IP68
Full load temperature rise:	50°c
Protection	Over-current, Over-temperature,Input Reverse Polarity Protection
NW	65G

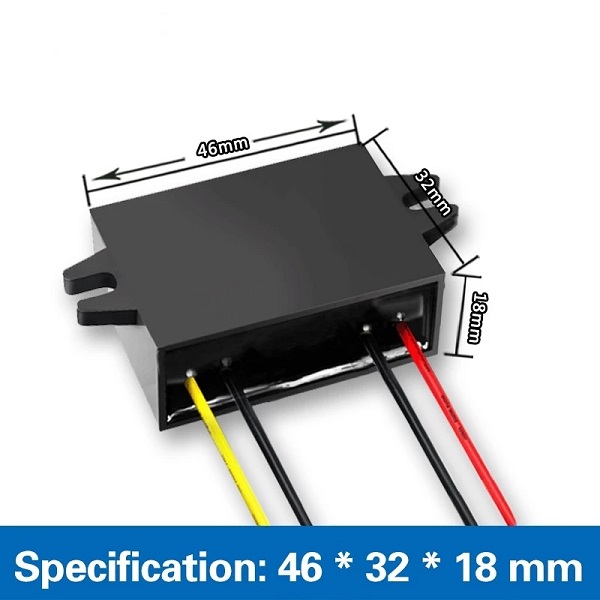

Product size	463218MM
Other output current option for 48V to 12V	5A 10A, 15A, 20A,25A(pls contact our sales team if need)
Attention: >Pls install according to the the label strictly,positive pole and nagative pole can’t be reversed, or the module and device might be damaged >To assure this converter has the sufficient voltage and power pls make sure the voltage and power input is enough.
