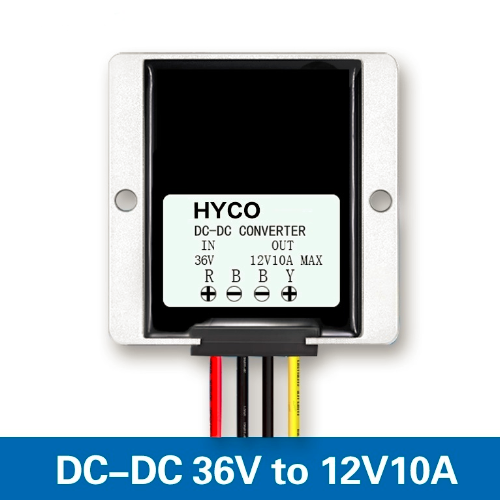

Parts for Club Car Golf Carts Voltage Reducers Converter Regulator 36v dc to 12v dc converter 10a 120w step down module
-40°c ~+85°c( If ambient temperature exceeds 40°c, lower power use,
or to enhance heat dissipation)
non-isolated buck module(buck)
Auto-recovery when device is back to normal operating,
waterproof IP68 design, anti-shock protection
Other output current
option for 36V48V to 12V
Product Name
36v dc to 12v dc converter
Model
HY-DL361210
Input rated voltage
36V48V DC
Input voltage range
20-60V DC
Efficiency
93%
Output voltage
12V
Output current
10A MAX
Output rated power
120W
Output peak power
144W
Voltage regulation
< 1%
Load regulation
< 2%
Working temperature
Module Properties
Rectification
synchronous rectification
Waterproof rating
IP68
Full load temperature rise:
50°c
Protection
Over-current, Short-circuit protection, Over-temperature,Instant absorption of high voltage protection
Input Reverse Polarity Protection
None (Please Series diode at the input port.)
NW
280G
Product size
74*74*32MM
15A(pls contact our sales team if need)
