24V to 12V

  • 24V to 12V 5A 60W
  • 24V to 12V 5A 60W
24V to 12V 5A 60W24V to 12V 5A 60W

24V to 12V 5A 60W

  • Model Number: HY-241205
  • Input Voltage: 24V
  • Output Voltage: 12V
  • Output Current: 5A MAX
  • Product description: 24V to 12V 5A 60W
  • INQUIRY

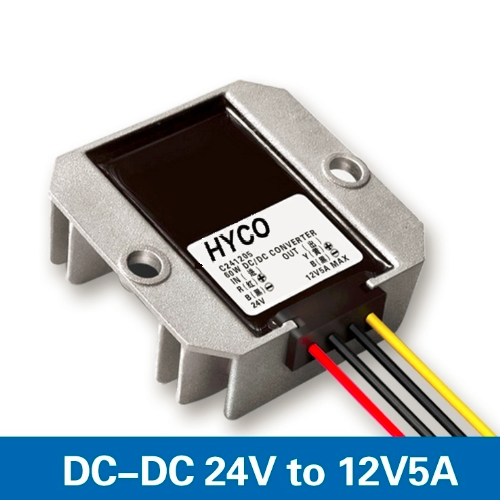

DC DC Converter 24V to 12V 5A 60W Step Down Voltage Converter Buck Truck Car CCTV DVR Power Supply

Product Name

DC DC Converter 24V to 12V 5A 60W

Brand

HYCO

Model No.

HY-241205

Module Properties

non-isolated buck module

Rectification

synchronous rectification

Input

Input Voltage

DC 24V

Input Voltage Range

DC 15-35V

Output

Output Voltage

DC 12V

Output Current

5A, auto-adaption

Output Power

60W

Conversion Efficiency

96%

Voltage regulation

±1%

Load regulation

± 2%

Ripple (Full load test)

< 150mV

No-load current

< 100mA

Working Temperature

-40~85℃

Waterproof Rating

IP68

Protection

Over-current protection 6A

Overheat protection 150℃

Output Short-circuit protection

Full waterproof potting

 Input/Output Reverse Polarity Protection

No, please follow label instructions wiring strictly: red for input positive, black is negative, yellow for output positive. If you need this function, please contact with us to customize it.

Application

Electric motors, fans, Audio, Trucks, Golf Carts ,Forklifts

GPS Navigation, Monitoring, Air conditioning

LED car display, DVD, LED bulb lights

Wind Power System, Solar Panel Power System, Photo voltaic energy

Electrical appliances, water pumps, industrial equipment, telecommunications and so on.

Certification

CE/RoHS/FCC

Case Material

Aluminum Alloy/Plastic, anti-shock, anti-drop, anti-moisture, anti-dust and so on

Product Size (L x W x H)

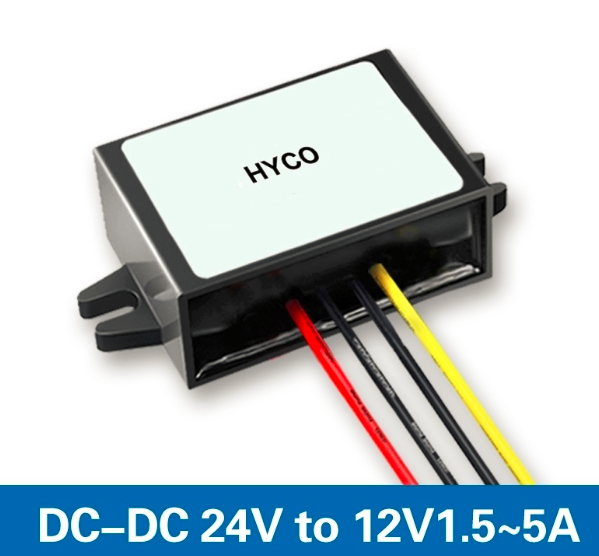

Aluminum Case: 66*60*22mm/ Plastic Case: 46*32*18mm

Installation Cable Length

 13-15cm

Product Weight

Aluminum Case: 100g / Plastic Case: 65g

Warranty

12 months, lifetime up to 100,000 hours

Cooling Way

Free air convection

OEM Service

Accept OEM logo/label/manual/packing box, Contact HYCO Now!

Customized Service

Accept customized converter such as input/output voltage, cable, interface and etc, Contact HYCO Now!
