24V to 12V 40A

Product Name

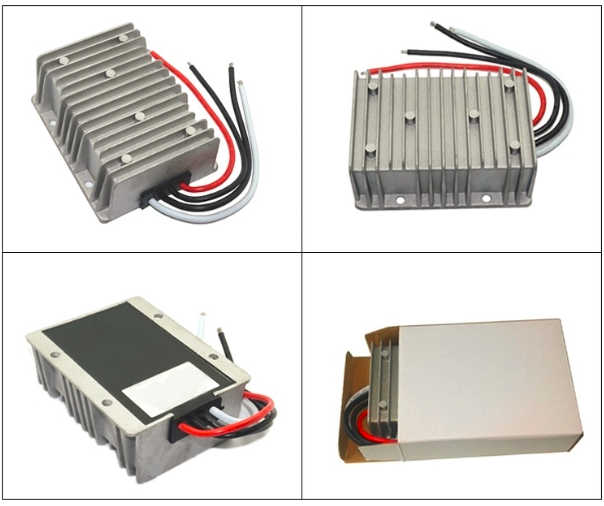

DC DC Converter 24V to 12V 40A 480W

Brand

HYCO

Model No.

Module Properties

non-isolated buck module

Rectification

synchronous rectification

Input

Input Voltage

DC 24V

Input Voltage Range

DC 18-36V

Output

Output Voltage

DC 12V

Output Current

40A

Output Power

480W

 Conversion Efficiency

Voltage regulation

±1%

Load regulation

± 2%

Ripple (Full load test)

< 150mV

No-load current

<100mA

Working Temperature

-40~80℃

Waterproof Rating

IP68

Protection

Over-current protection

Over-voltage protection

Overheat protection

Short-circuit protection

 Input/Output Reverse Polarity Protection

No, please follow label instructions wiring strictly: red for input positive, black is negative, white for output positive. If you need this function, please contact us to customize it.

Certification

CE/RoHS/FCC

Case Material

Aluminum, anti-shock, anti-drop, anti-moisture, anti-dust and so on

Product Size (L x W x H)

100*80*39mm

Product Weight

500g

Warranty

12 months, lifetime up to 100,000 hours

Cooling Way

Free air convection

OEM&ODM Service
