24V to 12V

24V to 12V 15A

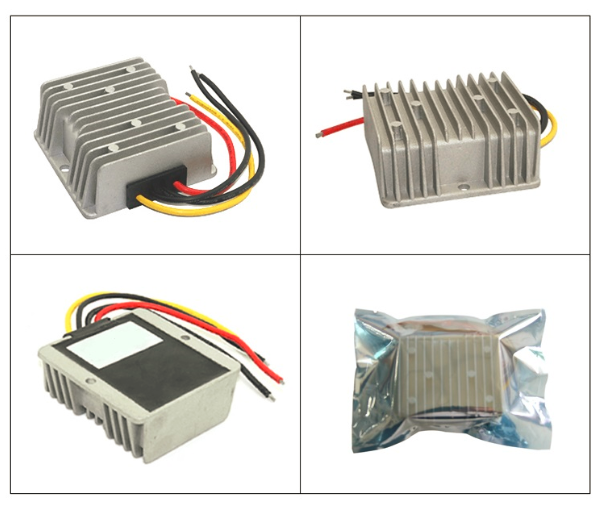

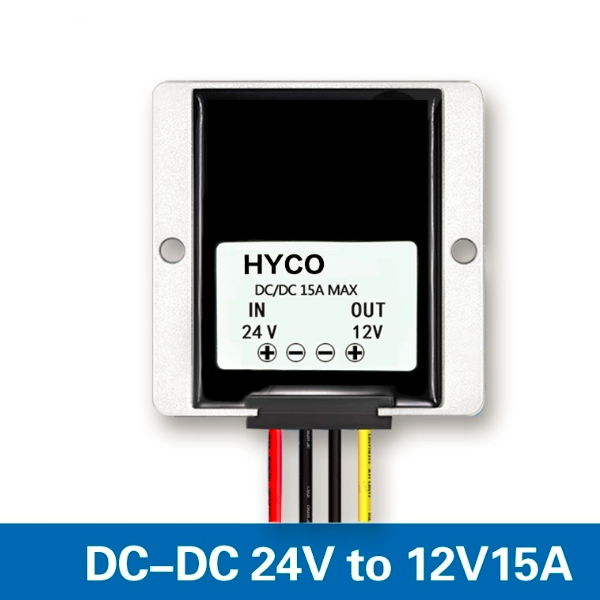

Waterproof 24V to 12V 15A 180w dc-dc power step down module converter buck, car power supply for gps/camera/speaker/cctv monitor

Product name	24v dc to 12v dc converter
Model	HY-DL241215
Input rated voltage	24V
Input voltage range	15V-40V
Efficiency	93%
Output voltage	12V (minimum pressure difference:3V)
Output current	15A MAX
Output rated power	180W
Output peak power	216W
Voltage regulation	< 1%
Load regulation	< 2%
Working temperature	-40°c ~+85°c( If ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation)
Module Properties	non-isolated buck module(buck)
Rectification	synchronous rectification
Waterproof rating	IP68
Full load temperature rise:	50°c
Protection	Over-current, Over-temperature, Short-circuit protection, Instant absorption of high voltage protection, waterproof IP68 design, anti-shock protection
Input Reverse Polarity Protection	NONE( (Please Series diode at the input port.)
NW	280g
Product size	747432mm
Other output current for 24V to 12V available	1.5A/3A/5A/8A/10A/20A/25A/30A (pls contact with our sales manager if need)
Attention: >Pls install according to the the label strictly,positive pole and nagative pole can’t be reversed, or the module and device might be damaged >To assure this converter has the sufficient voltage and power pls make sure the voltage and power input is enough.
