12V/24V to 5V

  • 12v 24v to 5v 10A
  • 12v 24v to 5v 10A
12v 24v to 5v 10A12v 24v to 5v 10A

12v 24v to 5v 10A

  • Model Number: HY-DL240510
  • Input Voltage: 12V 24V
  • Output Voltage: 5V
  • Output Current: 20A MAX
  • Product description: 12v 24v to 5v 10A
  • INQUIRY

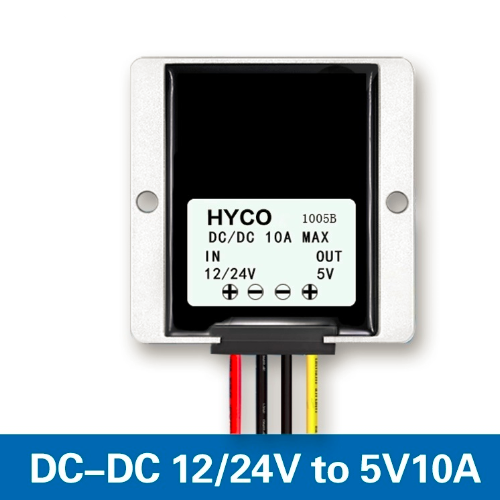

12V24V to 5V 10A 50W DC to DC Power Converter Step-down Buck Converter Module


Model HY-DL240510
Input rated voltage 12V24V
Input voltage range 10V-40V
Efficiency 93%
Output voltage 5V (minimum pressure difference:3V)
Output current 10A MAX
Output rated power
50W
Output peak power
60W
Voltage regulation < 1%
Load regulation < 2%
Working temperature

-40°c ~+85°c( If ambient temperature exceeds 40°c,

lower power use,

or to enhance heat dissipation)

Module Properties

non-isolated buck module(buck)

Rectification synchronous rectification
Waterproof rating
IP68
Full load temperature rise: 50°c
Protection Over-current, Over-temperature, Short-circuit protection,

Instant absorption of

high voltage protection,

waterproof IP68 design,

anti-shock protection

Input Reverse Polarity Protection
NONE( (Please Series diode at the input port.)
NW 280g
Product size 74*74*32mm

Other ouput voltage available

3.3V/3.7V/4.2V/6V/7.5V/9V/12V

(pls contact us if need)

Attention:

>Pls install according to the the label strictly,positive pole and nagative pole

can’t be reversed, or the module and device might be damaged
>To assure this converter has the sufficient voltage and power pls make sure

the voltage and power input is enough.
