12V/24V to 5V

12V 24V Step Down to 5V 3A/5A/8A/10A

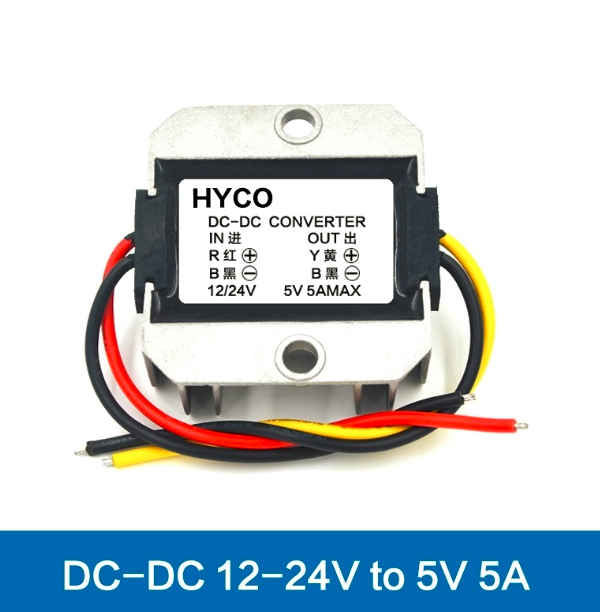

DC-DC Power Converter 12V 24V Step Down to 5V 3A/5A/8A/10A Buck Power Supply Module

Product Name	DC-DC Power Converter 12V 24V Step Down to 5V 3A/5A/8A/10A
Brand	HYCO
Model	HY-ZL2412053A/ HY-ZL2412055A/ HY-ZL2412058A/ HY-ZL24120510A
Input rated voltage	12V24V DC
Input voltage range	8-35V DC( (minimum pressure difference:3V)
Efficiency	93% (half load), 91% (full load)
Output voltage	5V
Output current	5A MAX
Output rated power	25W
Output peak power	40W
Voltage regulation	< 1%
Load regulation	< 2%
Working temperature	-40°c ~+80°c( If ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation)
Module Properties	non-isolated buck module(buck)
Rectification	synchronous rectification
Waterproof rating	IP68
Full load temperature rise:	50°c
Protection	Over-current, Over-temperature, Short-circuit protection, Auto-recovery when device is back to normal operating, waterproof IP68 design, anti-shock protection
Input Reverse Polarity Protection	None (Please Series diode at the input port.)
NW	100G
Product size	666022MM
Other output voltage option for 48V to 24V	3.3V, 3.7V, 4.2V, 5V, 6V, 7.5V, 9V(Pls contact with our sales manager if need)
Attention: >Pls install according to the the label strictly,positive pole and nagative pole can’t be reversed, or the module and device might be damaged >To assure this converter has the sufficient voltage and power pls make sure the voltage and power input is enough.
