12V/24V to 5V

  • 12V 24V to 5V 5A 8A 10A
  • 12V 24V to 5V 5A 8A 10A
12V 24V to 5V 5A 8A 10A12V 24V to 5V 5A 8A 10A

12V 24V to 5V 5A 8A 10A

  • Model Number: HY-CPT2405
  • Input Voltage: 12V 24V
  • Output Voltage: 5V
  • Output Current: 5A 8A 10A MAX
  • Product description: 12V 24V to 5V 5A 8A 10A
  • INQUIRY

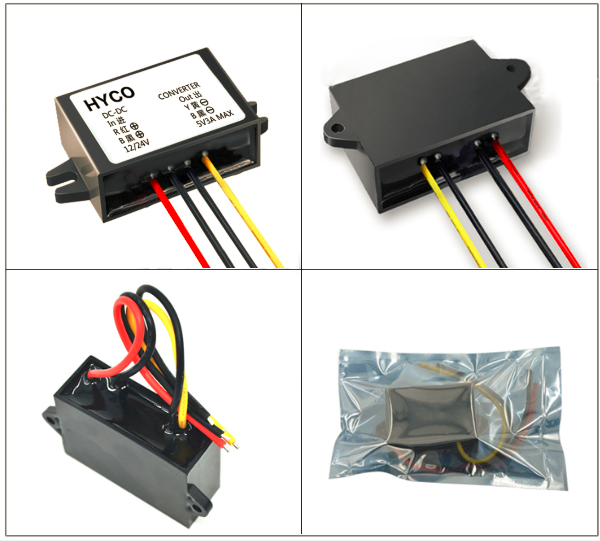

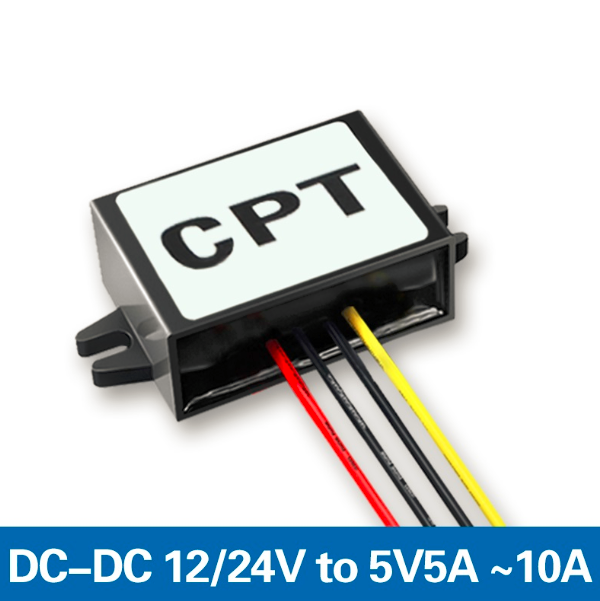

12V 24V  to 5V 5A 8A 10A DC to DC Converter


Product Name

DC DC Converter 12V 24V to 5V 5A / 8A / 10A

Brand

HYCO

Model No.

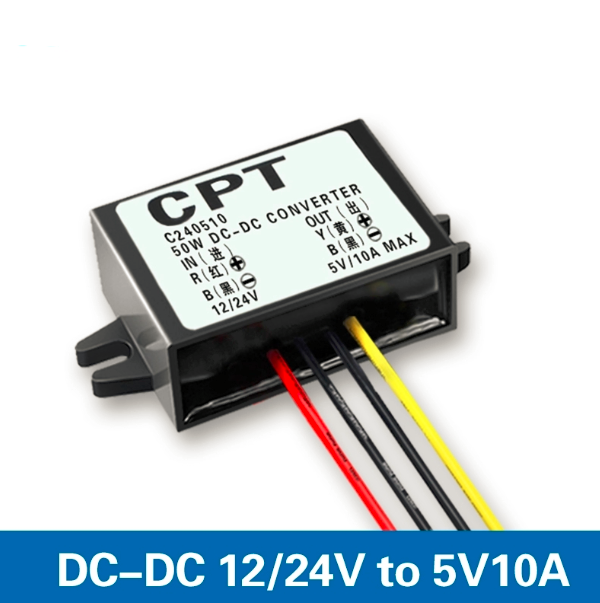

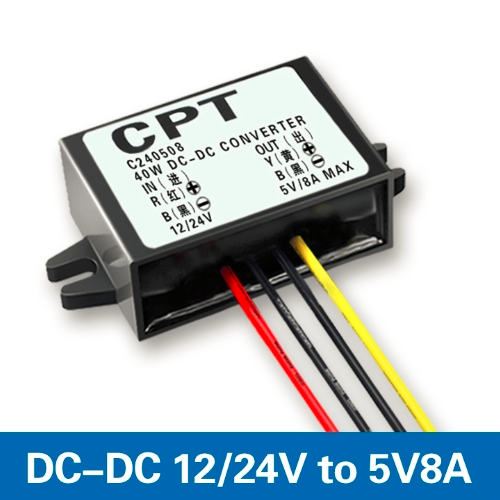

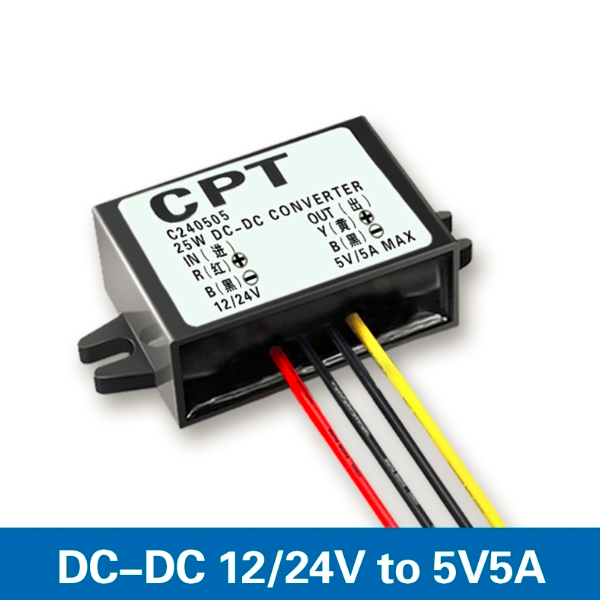

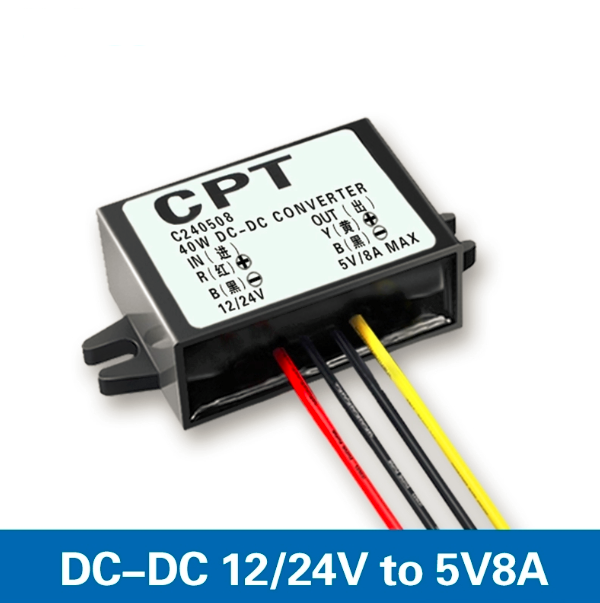

HY-CPT240505 / HY-CPT240508 / HY-CPT240510

Module Properties

non-isolated buck module

Rectification

synchronous rectification

Input

Input Voltage

DC 12V 24V

Input Voltage Range

DC 8-35V

Output

Output Voltage

DC 5V

Output Current

5A / 8A / 10A

Output Power

25W / 40W / 50W

 Conversion Efficiency

>90%,95% max

Voltage regulation

±1%

Load regulation

± 2%

Ripple (Full load test)

< 150mV

No-load current

< 100mA

Working Temperature

-40~85℃

Waterproof Rating

IP68

Protection

Over-current protection

Overheat protection

Short circuit protection

 Input/Output Reverse Polarity Protection

No, please follow label instructions wiring strictly: red for input positive, black is negative, yellow for output positive. If you need this function, please contact with us to customize it.

Application

Electric motors, fans, Audio, Trucks, Golf Carts ,Forklifts

GPS Navigation, Monitoring, Air conditioning

LED car display, DVD, LED bulb lights

Wind Power System, Solar Panel Power System

Electrical appliances, water pumps, industrial equipment, telecommunications and so on.

Certification

CE/RoHS/FCC

Case Material

Plastic, anti-shock, anti-drop, anti-moisture, anti-dust and so on

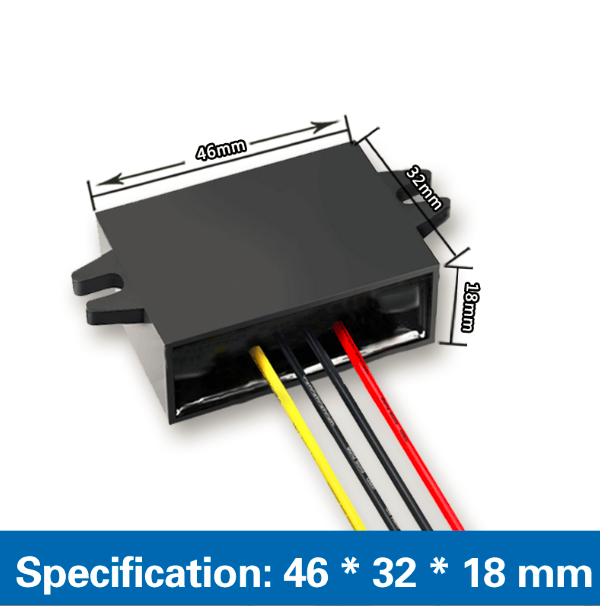

Product Size (L x W x H)

46*32*18mm

Installation Cable Length

 13-14cm

Product Weight

 65g

Warranty

12 months, lifetime up to 100,000 hours

Cooling Way

Free air convection

OEM Service

Accept OEM logo/label/manual/packing box, Contact HYCO Now!

Customized Service

Accept customized converter such as input/output voltage, cable, interface and etc, Contact HYCO Now!
