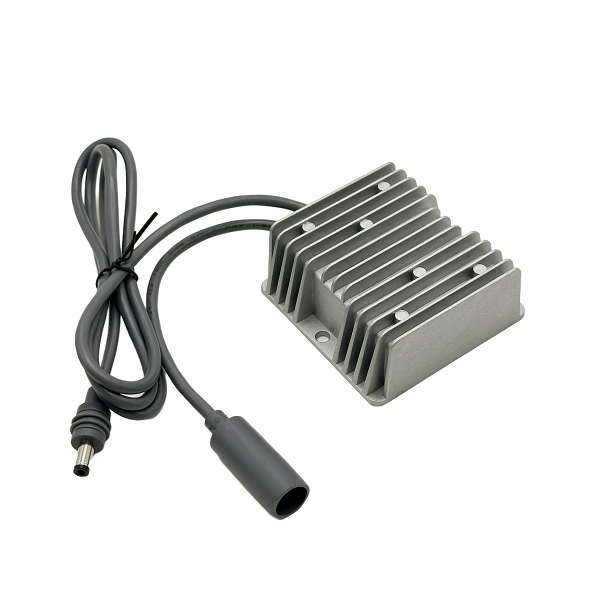

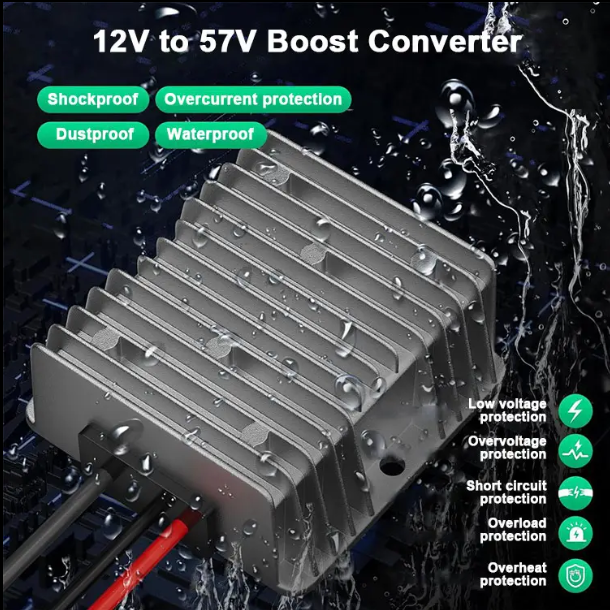

Product Name |
DC 12/24V to 57V 4.5A |
|
Brand |
HYCO |
|
Model No. |
HY-ZL120505 | |
Module Properties |
non-isolated buck module |
|
Rectification |
synchronous rectification |
|
Input |
||
Input Voltage |
DC 12V/24V |
|
Input Voltage Range |
DC 10-30V |
|
Output |
||
Output Voltage |
DC 57V |
|
Output Current |
4.5A |
|
Output Power |
256.5W Max |
|
Conversion Efficiency |
90% | |
No-load current |
< 100mA |
|
Working Temperature |
-25~65℃ |
|
Waterproof Rating |
IP67 |
|
Protection |
Over-current protection |
|
Overheat protection |
||
Short circuit protection |
||
Anti-dust |
||
Certification |
CE |
|
Case Material |
Aluminum Alloy |
|
Product Size (L x W x H) |
74*74*32mm |
|
Installation Cable Length |
Customized |
|
Product Weight |
Around 330g |
|
Warranty |
1 Year |
|
OEM/ODM |
Support |
