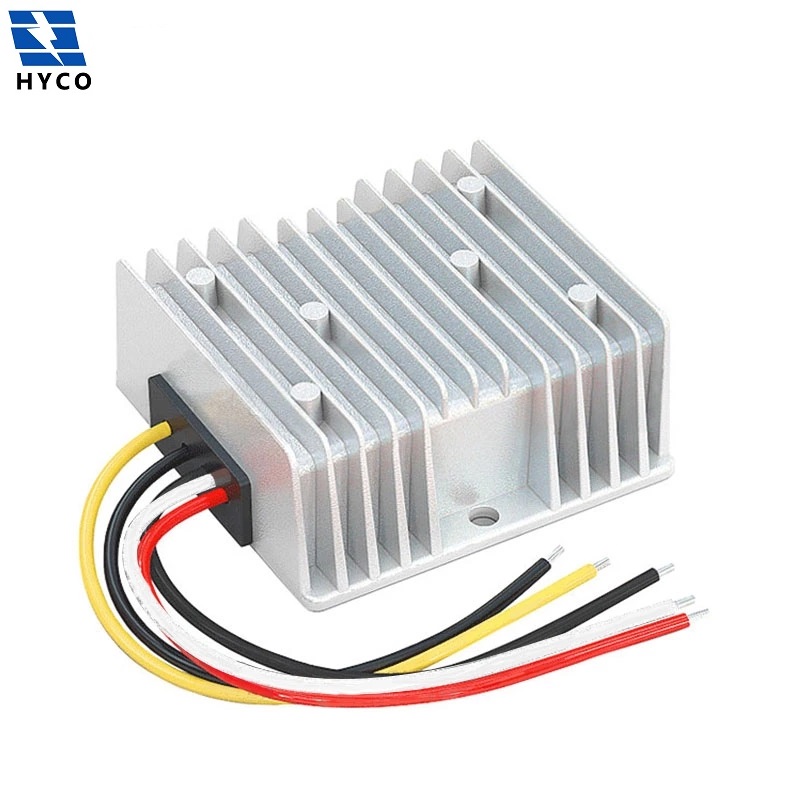

Product Name |
DC30-90V to 12V 5A 10A 20A Max |
|
|
Brand |
HYCO |
|
|
Model No. |
HY-DL9012ACC | |
|
Module Properties |
non-isolated buck module |
|
|
Rectification |
synchronous rectification |
|
|
Input |
||
|
Input Voltage |
DC 36V 48V 60V 72V |
|
|
Input Voltage Range |
DC 30-90V |
|
|
Output |
||
|
Output Voltage |
DC 12V |
|
|
Output Current |
5A 8A 10A 12A 15A 20A Max |
|
|
Output Power |
60W 96W 120W 180W 225W 240W Max |
|
|
Conversion Efficiency |
92% | |
|
Voltage regulation |
±1% |
|
|
Load regulation |
± 2% |
|
|
Ripple (Full load test) |
< 150mV |
|
|
No-load current |
< 100mA |
|
|
Working Temperature |
-40~85℃ |
|
|
Waterproof Rating |
IP68 |
|
|
Protection |
Over-current protection |
|
|
Overheat protection |
||
|
Short circuit protection |
||
|
Low voltage protection(please contact us to set the data) |
||
|
Input/Output Reverse Polarity Protection |
Option |
|
|
Certification |
CE FCC ROHS IC ISO7637 |
|
|
Case Material |
Aluminum, anti-shock, anti-drop, anti-moisture, anti-dust |
|
|
Product Size (L x W x H) |
74*74*32mm |
|
|
Installation Cable Length |
13-14cm |
|
|
Product Weight |
260g |
|
|
Warranty |
18 months |
|
|
Cooling Way |
Free air convection |
|
|
OEM Service |
Support | |
|
Customized Service |
Support |
|
