8-36V to 13.8V 15-25A

Product Name

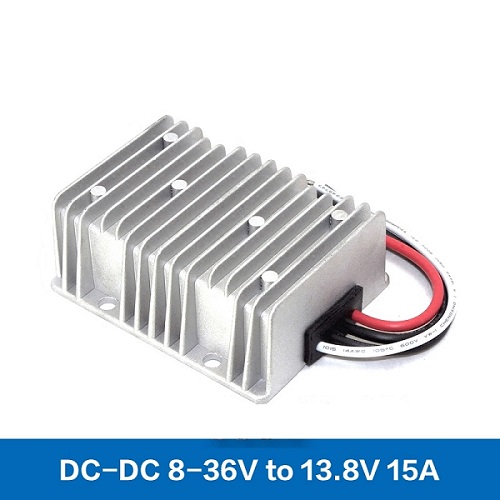

DC DC Buck Boost Converter 12V to 13.8V

Brand

HYCO

Model No.

Module Properties

non-isolated buck boost module

Rectification

synchronous rectification

Input

Input Voltage

DC 12V

Input Voltage Range

DC 8-36V

Output

Output Voltage

DC 13.8V

Output Current

15A / 20A / 25A

Output Power

207W / 276W / 345W

 Conversion Efficiency

Voltage regulation

±1%

Load regulation

± 2%

Ripple (Full load test)

< 170mV

No-load current

60mA

Working Temperature

-35°c ~ +70°c

Waterproof Rating

IP68

Protection

Over-current protection

Over-voltage protection

Overheat protection

Short-circuit protection

Application

Trucks,Golf Carts,Forklifts,Buses,Loaders,Logging Vehicles

Wind Power System,Solar Power System,

Electromotor,Telecommunications,Boat & Yacht and so on...

Certification

CE/RoHS/FCC

  Case Material

Aluminum, anti-shock, anti-drop, anti-moisture, anti-dust and so on

  Product Size (L x W x H)

100*80*39mm

Product Weight

 500g

Warranty

12 months, lifetime up to 100,000 hours

Cooling Way

Free air convection

OEM&ODM Service
