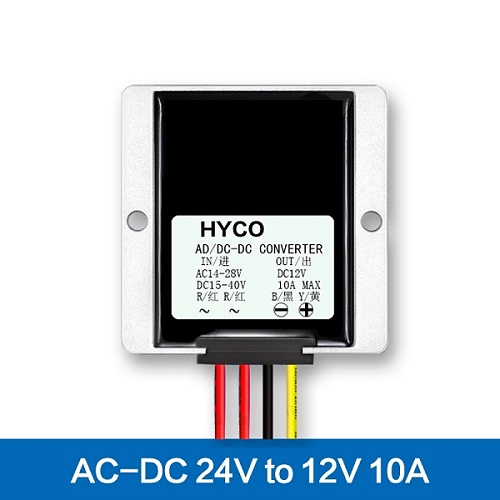

24VAC to 12VDC 8A/10A

Product Name

AC DC Converter 24V to 12V

Brand

HYCO

Model No.

Module Properties

non-isolated buck module

Rectification

synchronous rectification

Input

Input Voltage

AC/DC 24V

Input Voltage Range

AC14-28V DC15-40V

Output

Output Voltage

DC 12V

Output Current

8A / 10A max

Output Power

96W / 120W max

 Conversion Efficiency

Voltage regulation

±1%

Load regulation

± 2%

Ripple (Full load test)

< 150mV

No-load current

< 100mA

Working Temperature

-40~80℃

Waterproof Rating

IP68

Protection

Over-current protection

Low Voltage protection

Short circuit protection

Application

Electric motors, fans, Audio, Trucks, Golf Carts ,Forklifts

GPS Navigation, Monitoring, Air conditioning

LED car display, DVD, LED bulb lights

Wind Power System, Solar Panel Power System

Electrical appliances, water pumps, industrial equipment, telecommunications and so on.

Certification

CE/RoHS/FCC

Case Material

Aluminum, anti-shock, anti-drop, anti-moisture, anti-dust and so on

Product Size (L x W x H)

74*74*32mm

Installation Cable Length

 13-14cm

Product Weight

280g

Warranty

12 months, lifetime up to 100,000 hours

Cooling Way

Free air convection
