24V to 19V

24V to 19V 10A

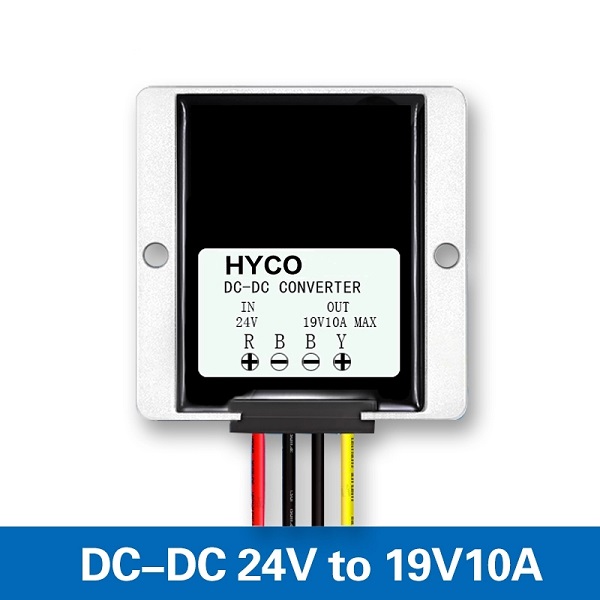

24V DC to 19V DC Buck Converter, Notebook Power Supply 19V 10A

Model	HY-DL241910
Input rated voltage	24V DC
Input voltage range	22-40V DC
Efficiency	96%
Output voltage	19V
Output current	10A MAX
Output rated power	190W
Output peak power	228W
Voltage regulation	< 1%
Load regulation	< 2%
Working temperature	-40°c ~+80°c( If ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation)
Module Properties	non-isolated buck module(buck)
Rectification	synchronous rectification
Waterproof rating	IP68
Full load temperature rise:	50°c
Protection	Over-current, Over-temperature, Short-circuit protection,Instant absorption of high voltage protection Auto-recovery when device is back to normal operating, waterproof IP68 design, anti-shock protection
Input Reverse Polarity Protection	None (Please Series diode at the input port.)
NW	280G
Product size	747432MM
Other output current option for 24v to 19v	5A, 15A(pls contact our sales team if need)
Attention: >Pls install according to the the label strictly,positive pole and nagative pole can’t be reversed, or the module and device might be damaged >To assure this converter has the sufficient voltage and power, pls make sure the voltage and power input is enough.
