12V to 36V Boost Converter

  • 12V to 36V 1A 2A
  • 12V to 36V 1A 2A
12V to 36V 1A 2A12V to 36V 1A 2A

12V to 36V 1A 2A

  • Model Number: HY-SZL1236
  • Input Voltage: 12V
  • Output Voltage: 36V
  • Output Current: 1A 2A MAX
  • Product description: 12V to 36V 1A 2A
  • INQUIRY

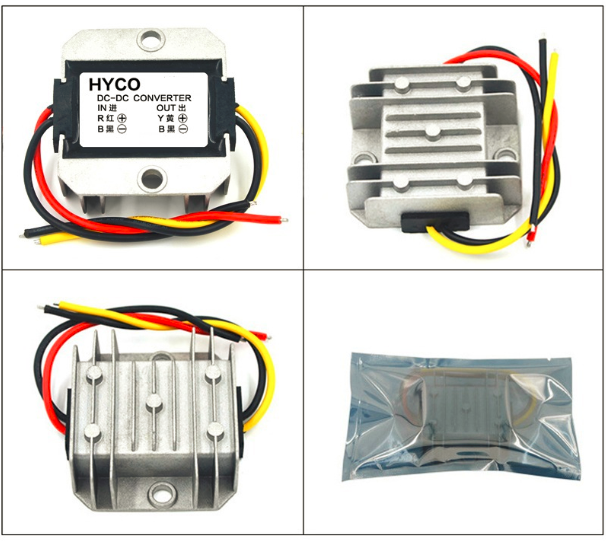

Waterproof DC to DC 12V to 36V Converter Step Up Voltage Regulator Booster Power Supply

Product Name

DC DC Converter 12V to 36V

Brand

HYCO

Model No.

HY-SZL1233601 / HY-SZL123602

Module Properties

non-isolated boost module

Rectification

synchronous rectification

Input

Input Voltage

DC 12V

Input Voltage Range

DC 10-30V

Output

Output Voltage

DC 36V

Output Current

1A / 2A

Output Power

36W / 72W

 Conversion Efficiency

95% (half load), 94% (full load)

Voltage regulation

±1%

Load regulation

± 2%

Ripple (Full load test)

< 200mV

No-load current

20mA

Working Temperature

-40~80℃

Waterproof Rating

IP68

Protection

Over-current protection

Over-voltage protection

Overheat protection

 Input/Output Reverse Polarity Protection

No, please follow label instructions wiring strictly: red for input positive, black is negative, yellow for output positive. If you need this function, please contact with us to customize it.

Application

Electric fans, Audio, Trucks, Golf Carts ,Forklifts

GPS Navigation, Monitoring, Air conditioning

LED car display, DVD, LED bulb lights

CE/RoHS/FCC

Case Material

Aluminum, anti-shock, anti-drop, anti-moisture, anti-dust and so on

Product Size (L x W x H)

66*60*32mm

Product Weight

135g

Warranty

12 months, lifetime up to 100,000 hours

Cooling Way

Free air convection

OEM&ODM Service

Accept
