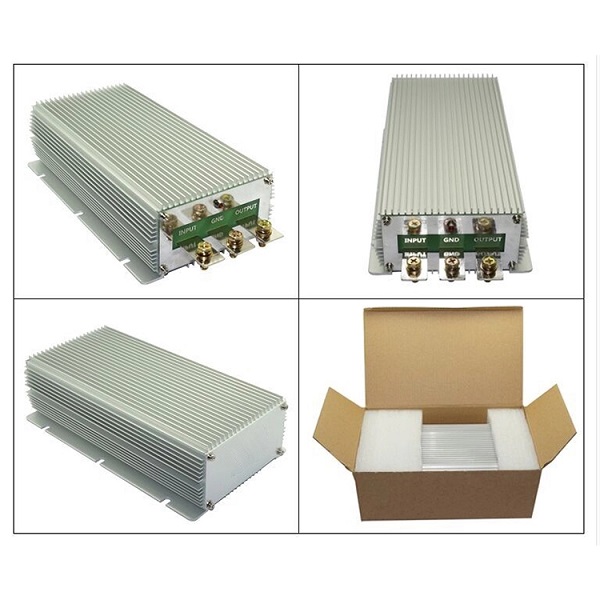

12V to 28V Boost Converter

  • 12V to 28V 40A
12V to 28V 40A

12V to 28V 40A

  • Model Number: HY-SDL122840
  • Input Voltage: 12V
  • Output Voltage: 24V
  • Output Current: 40A MAX
  • Product description: 12V to 28V 40A
  • INQUIRY

1120W HIGH POWER DC 12 Volt to DC 28 Volt 40A Voltage Converter Regulator Booster

Product Name

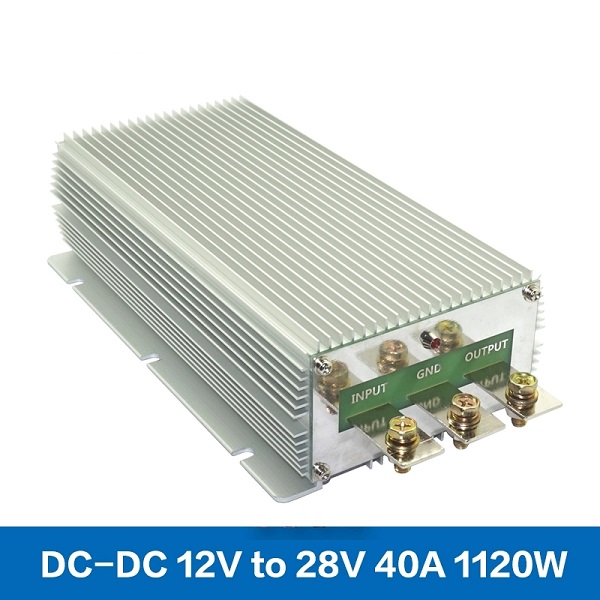

DC DC Converter 12V to 28V 40A 1120W

Brand

HYCO

Model No.

HY-SDL122840

Module Properties

non-isolated boost module

Rectification

synchronous rectification

Input

Input Voltage

DC 12V

Input Voltage Range

DC 10-16V

Output

Output Voltage

DC 28V

Output Current

40A

Output Power

1120W

 Conversion Efficiency

97.5% (half load), 96% (full load)

Voltage regulation

±1%

Load regulation

± 2%

Ripple (Full load test)

< 180mV

No-load current

50-60mA

Working Temperature

-40~80℃

Waterproof Rating

IP68

Protection

Over-current protection

Over-voltage protection

Overheat protection

 Input/Output Installation

INPUT---------Input Positive“+”
GND------Input/Output Negative "-"
OUTPUT------Output Positive "+"

Application

Electric motors, fans, Audio, Trucks, Golf Carts ,Forklifts

GPS Navigation, Monitoring, Air conditioning

LED car display, DVD, LED bulb lights

Wind Power System, Solar Panel Power System

Electrical appliances, water pumps, industrial equipment, telecommunications and so on.

Certification

CE/RoHS/FCC

  Case Material

Aluminum, anti-shock, anti-drop, anti-moisture, anti-dust and so on

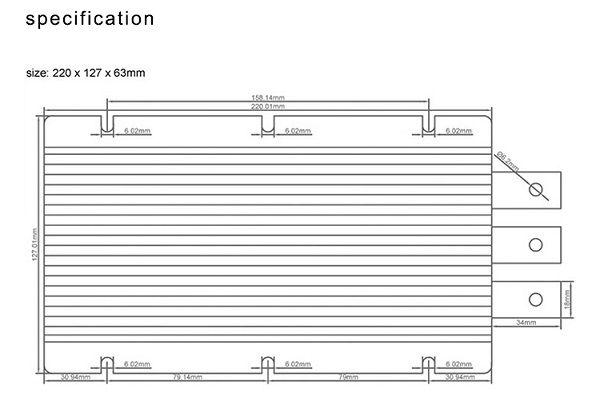

  Product Size (L x W x H)

220*127*63mm (Machine Size:265*127*63mm/Packing Size:300*152*100mm)

Product Weight

 2.85kg

Warranty

12 months, lifetime up to 100,000 hours

Cooling Way

Free air convection

OEM&ODM Service

 Accept
