12V to 24V Boost Converter

12V to 24V 40A 50A

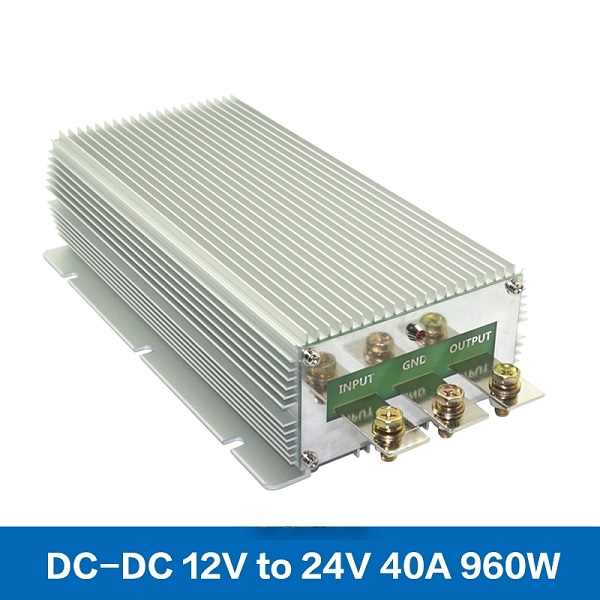

1200W 960W Booster 12V to 24V DC Step Up Converter

Product Name		1200W 960W Booster 12V to 24V DC Step Up Converter
Brand		HYCO
Model No.		HY-SDL122450 / HY-SDL122440
Module Properties		non-isolated boost module
Rectification		synchronous rectification
Input
Input Voltage	DC 12V
Input Voltage Range	DC 10-16V
Output
Output Voltage	DC 24V
Output Current	50A
Output Power	1200W
Conversion Efficiency	97.5% (half load), 96% (full load)
Voltage regulation	±1%
Load regulation	± 2%
Ripple (Full load test)	< 180mV
No-load current	50-60mA
Working Temperature	-40~80℃
Waterproof Rating	IP68
Protection	Over-current protection
	Over-voltage protection
	Overheat protection
Input/Output Installation	INPUT---------Input Positive“+” GND------Input/Output Negative "-" OUTPUT------Output Positive "+"
Application	Electric motors, fans, Audio, Trucks, Golf Carts ,Forklifts GPS Navigation, Monitoring, Air conditioning LED car display, DVD, LED bulb lights Wind Power System, Solar Panel Power System Electrical appliances, water pumps, industrial equipment, telecommunications and so on.
Certification	CE/RoHS/FCC
Case Material	Aluminum, anti-shock, anti-drop, anti-moisture, anti-dust and so on
Product Size (L x W x H)	33012763mm
Product Weight	3.2kg
Warranty	12 months, lifetime up to 100,000 hours
Cooling Way	Free air convection
OEM&ODM Service	Accept
