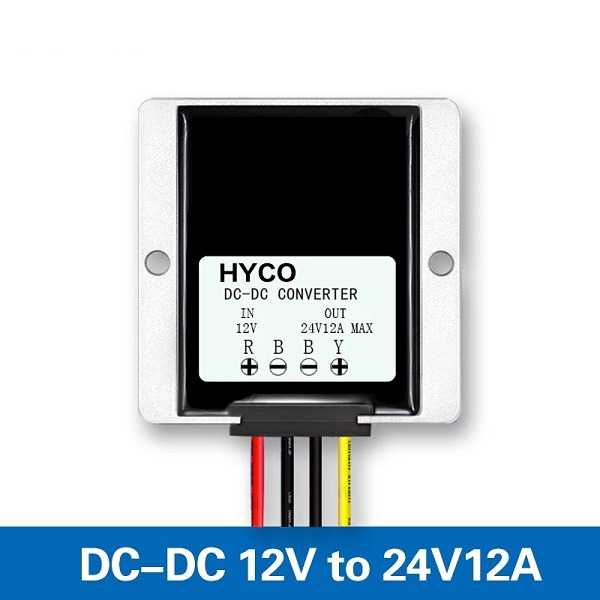

12V to 24V Boost Converter

12V to 24V 1A-15A

12V to 24V DC-DC Step Up Converter Transformer Boost Car Power Supplies Modules

Model	HY-SDL1224**
Input rated voltage	DC 12V
Input voltage range	DC 10-20V
Efficiency	96%
Output voltage	24V
Output current	1A 2A 3A 5A 8A 10A 12A 15A 20A MAX
Output rated power	24W 48W 72W 120W 192W 240W 288W 360W 480W
Output peak power
Voltage regulation	< 1%
Load regulation	< 2%
Working temperature	-25°c ~+65°c( If ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation)
Module Properties	non-isolate module
Rectification	synchronous rectification
Waterproof rating	IP68
Full load temperature rise:	45°c
Protection	Over-current, Over-temperature protection
Input Reverse Polarity Protection	None (Please Series diode at the input port.)
NW	Approx 280g
Product size	747432mm
Other output current option for DC 12V to 24V	3A/5A/8A/10A/12A/15A/20A(pls contact with our sales manager if need)
Attention: >Pls install according to the the label strictly,positive pole and nagative pole can’t be reversed, or the module and device might be damaged >To assure this converter has the sufficient voltage and power pls make sure the voltage and power input is enough.
